We are Manufacturer, Supplier, Exporter of Oil Filter Cartridges, Transformer Oil Filters, Transformer Oil Filter Cartridges, Hydraulic Oil Filters, Hydraulic Oil Filter Cartridges, Cartridge Oil Filters and Our Setup Situated at Pune, Maharashtra, India.
Special Features

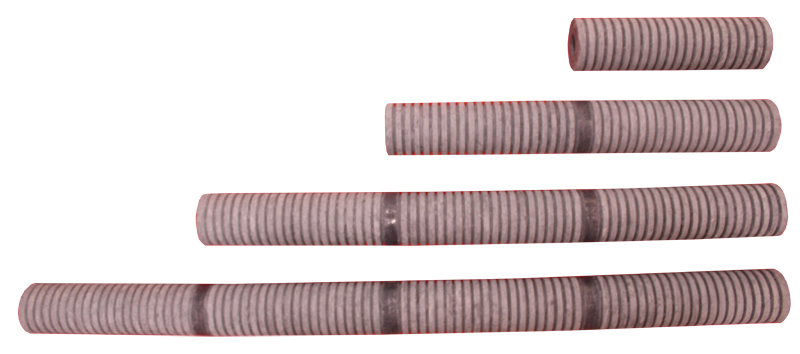

- Oil Filter Cartridges (KF Grenolic) are a more cost effective and productive substitute to the Phenolic Cartridges (Brown Cartridges) with respect to oil filtration.
- Our filter elements designed specially for oil filtration are capable of giving consistent Oil Filtration Outputs upto NAS Class 3
- These next generation filters capture contaminant particles faster than traditional filter elements.
- Very high filtration capacity.
- Extremely rigid graded density structure allows the filter to withstand extreme viscosity and temperature without deformation or collapse.
- Each and every micron rating has a unique weight with different output capacity
- These cartridges give excellent flow with low pressure drop and ensure no particle unloading.
- Has a high dirt holding capacity (68% more Surface Area in case of grooved cartridges)
- Plain Cartridges can be washed and reused without worrying about loss in filtration quality thereby increasing life of filter cartridge.
- Capable of giving flow rate as high as 1000 litres / hour for water and around 250 litres / hour for oil from a single 10" filter element.
- Capable of withstanding temperatures up to 121 °C
- Does not impart taste, odour or colour to the filtrate.
Technical Specifications
| Material Of Construction | Specially formulated resin bonded cellulose fibres |
| Available Sizes | |
| Length : | 50 mm to 1016 mm |
| Outer Diameter : | 62.5 mm / 70 mm |
| Inner Diameter : | 25 mm / 28 mm / 30 mm |

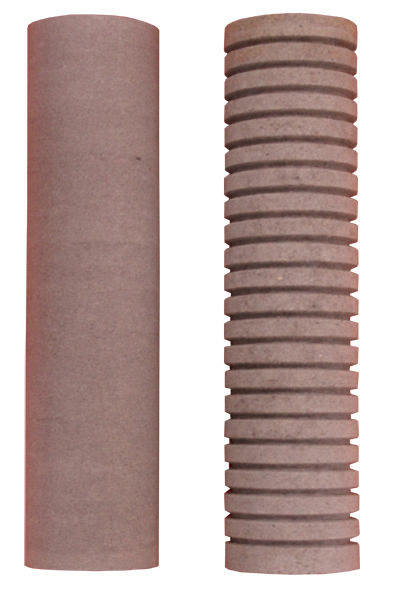

| Types : | Grooved / Plain |
| End Connection | DOE, SOE |
| Removal Micron Ratings ( μ m ) | |
| Fine Filters : | 0.1 μ / 0.2 μ / 0.4 μ |
| Pre - Filters : | 1 μ / 3 μ / 5 μ |
| Basic Filters : | 10 μ / 25 μ / 50 μ / 75 μ / 100 μ |
| Flowrate from single 10” Element | Upto 1000 litres / hour ( Water) Upto 250 litres / hour ( Oil ) |
| Maximum Operating Temperature | 121°C |
| Maximum Pressure | 90 psi (6.2 kg/Cm2) |
Manufacturer Of Certified Resin Bonded Cellulose Melamine (RBCM) Filter Cartridges
RBC Oil Filter Cartridges And Supplier Of All Types Of Industrial Filters
